Shenzhen Found Printed Circuit Board Co., Ltd. Factory Tour

I'm Online Chat Now
China Shenzhen Found Printed Circuit Board Co., Ltd. certification
China Shenzhen Found Printed Circuit Board Co., Ltd. certification
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— m***k

Please develop more nice PCB Boards and with better prices, so we can sell your machines to more clients and gain larger markets. Thanks you

—— Luke

  • Production Line

    Found Pcb, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology,quality and quick turn over challenges with lowest cost.

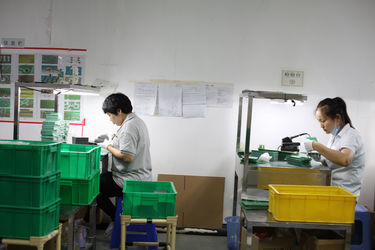

    Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 0



    Our Factory

    Shenzhen Found Printed Circuit Board Co., Ltd.specializing in manufacturing printed circuit board from single layer to mutilayer layer , is estalished with a professional team in the area of marketing,production, testing and customer services.By introducing advanced technology and equipment at home and aboard, we supply products with FR4 laminate,Metal Laminate(Aluminium Based and Copper Based) and high frequency board, which are used in safty,lighting,telecommunication,industrial control,Medical equipment and etc. Over 60% of our products are exported to Europe, America,Japan and other Asian area.

    Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 1 Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 2

    5.jpg Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 4



    Production Equipment

    Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 5

    Shenzhen Found Printed Circuit Board Co., Ltd. factory production line 6

  • OEM/ODM

    We not only supply PCB products but also supply relevant OEM/ODM services and customized solutions with Stable Quality and Reasonable Prices.



  • R&D

    Technical Capabilities



    Technical Capabilities
    Item process capacity
    No. of layer Double side to 20 Layers.Build up 2+N+2,Double Sided aluminium PCB , metal core PCB
    Materials FR-4 ,CEM-1/3,HF material,Teflon,Rogers,Bergquist,high TG,PTFE,aluminum.
    Board thickness 0.1mm to 4.0mm 0.4mm up for 4 layers 4.0mm for 16 layers
    Copper cladding (inner)18um to 105um (Outer)12um to 210um
    Maximum size 500*1500mm
    Minimun trace (width/spacing)0.075mm
    Hole size tolerance (NPTH)±0.075mm (PTH)±0.05mm
    Diameter tolerance (NPTH)±2mil (PTH)±3mil
    Min.Distance hole/line to edge 20mil 12mil
    Minimun welding ring thickiness 0.1mm
    Minimun isolation pad 10mil
    Minimun solder mask width 0.075mm
    Minimum solder window 0.05mm
    Impedance tolerance ±10%
    Minimun hole size Finish,mechanical -0.15mm
    Finish,laser -0.10mm
    Aspect ratio Vias≤10:1
    Build vias≤0.7:1
    Surface finishs HAL,Immersion gold,Flash gold, Pre-flux(OSP),Selective gold plates and gold tabs,Stripping blue glue,Carbon oil,Pure tin plating,silver plating,tin plating,thickness Finger plating.
    Quality Standards Accept spcifications of customer and IPC(class II or III)
