Description
PCB: Wireless Router PCB HDI High Density Interconnector PCB Base Material: IT-180A
Number Of Layers: 8 Layer Board Thickness: 1.6+/-0.128mm
Min. Hole Size: 0.25mm Min. Line Width: 0.102mm
Min. Line Spacing: 0.117mm Solder Mask Color: Green
Surface Treatment: Immersion Gold
High Light:

Hdi Multilayer Pcb Wireless Router 1.6mm

,

Wireless Router Hdi Multilayer Pcb 1.6mm

,

pcb wireless router 1.6mm

Wireless Router PCB HDI High Density Interconnector PCB

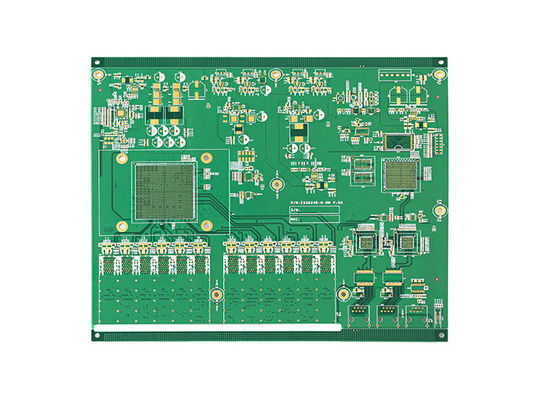

The Wireless Router PCB HDI High Density Interconnector PCB is the HDI PCB circuit board developed and produced by Shenzhen Quanhong Electronics Co., Ltd. the HDI board is made of IT-180A material, surface gold deposition and laser drilling. The minimum line width and line spacing can reach 75um and the minimum hole diameter can reach 0.1mm. The buried blind hole circuit board is widely used in digital cameras, notebooks, mobile phones and other electronic products and automotive electronics.

Rigid PCB Manufacturing Capability

Rigid PCB Manufacturing Capability
Item PCB HDI
Layer 1-40 1-40
Minimum linewidth/linespacing 3MIL/3MIL(0.075mm) 2MIL/2MIL(0.05MM)
Minimum hole diameter 6MIL(0.15MM) 6MIL(0.15MM)
Minimum solder resist opening (single-side) 1.5MIL(0.0375MM) 1.2MIL(0.03MM)
Minimum solder resist bridge 3MIL(0.075MM) 2.2MIL(0.055MM)
Maximum aspect Ratio (thickness/hole diameter) 10:01 8:01
Impedance control accuracy +/-8% +/-8%
Finished thickness 0.3-3.2MM 0.2-3.2MM
Maximum board size 630MM*620MM 620MM*544MM
Maximum finished copper thickness 6OZ(210UM) 2OZ(70UM)
Minimum board thickness 6MIL(0.15MM) 3MIL(0.076MM)
Maximum layer 14层 12层
Surface treatment HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag Immersion Gold,OSP,selectiveimmersion gold,
carbon print
Min/max laser hole size / 3MIL / 9.8MIL
Laser hole size tolerance / 10%



Packaging & Delivery
Packaging Details: Inner: vacuum packing or Anti-static package,
Outer: export carton
or according to the customer's requirement.
Port: Shenzhen or Hongkong
Lead Time: Quantity(Pieces) 1-10 11-100 101-1000 >1000
  Est. Time(days) 20 21 25 To be negotiated



FAQ:

Q: What service do you have?
FASTPCB: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.



Q: What is needed for PCB & PCBA quotation?
FASTPCB: For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCB: PCB information, BOM,Testing documents.



Q: How to keep our product information and design file secret ?
FASTPCB: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.



Q: What are the main products of your PCB/PCBA services?
FASTPCB: Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.



Q: What is your minimum order quantity (MOQ)?
FASTPCB: Our MOQ is 1 PCS, sample and mass production all can support.



Q: Are you factory?

FASTPCB:Shangxing West Industrial Zone, Xihuan Road, Shajing Street, Bao 'an District, Shenzhen, Guangdong province, China
