Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole

Certification
China Quanhong FASTPCB certification
China Quanhong FASTPCB certification
I'm Online Chat Now

Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole

Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole
Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole

Large Image :  Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole

Product Details:
Brand Name: FASTPCB
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: USD 0.01-100PCS
Packaging Details: Inner: vacuum packing or Anti-static package, Outer: export carton
Payment Terms: L/C, T/T
Supply Ability: 25,000 ㎡ / month Or 10PCS/48Hour(Double-Sided Printed Board)Or 10PCS/72Hour(Multilayer printed circuit board )

Twelve Layer 2 Step 6 Step HDI PCB Board Blind Buried Via Hole

Description

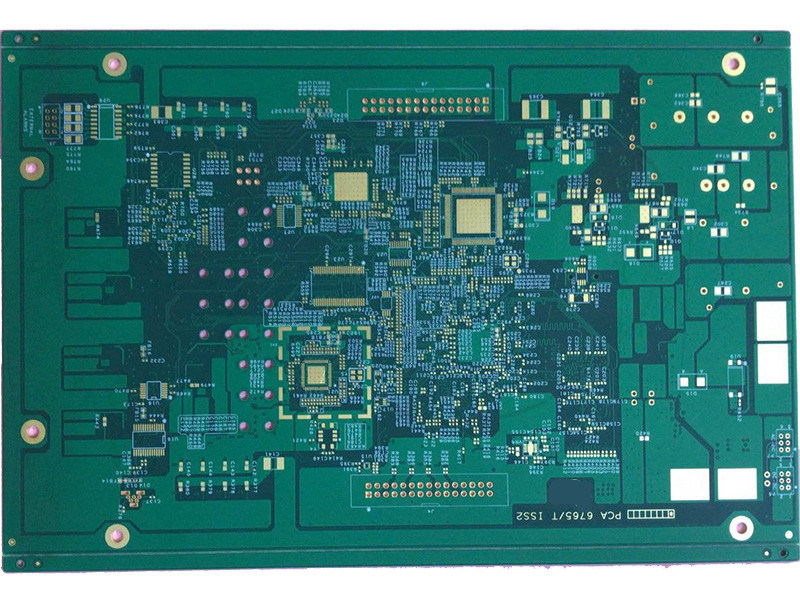

PCB: 7th Order HDI Arbitrary Interconnection PCB Circuit Board Base Material: SY S1000-2M
Number Of Layers: 16Layer Board Thickness: 1.8mm+/-10%
Min. Line Width: 0.075mm Surface Finishing: Immersion Gold Thickness: 2U "
Minimum Plate Thickness Aperture Ratio: 8:1 Min. Hole Size: Laser Blind Hole: 0.1mm
Min. Line Spacing: 0.075mm
High Light:

6 step HDI PCB

,

6 Step HDI PCB Board Blind Buried Via Hole

,

hdi pcb manufacturer in china

7th Order HDI Arbitrary Interconnection PCB Circuit Board

The 7-Stage HDI arbitrary interconnection PCB circuit board is one of the series of 7-Stage HDI PCB circuit boards developed and produced by Shenzhen Quanhong Electronics Co., Ltd. this type of 7-Stage HDI circuit board is made of Shengyi s1000-2m material through multiple laser drilling and pressing. Level 7 HDI board is widely used in high-end smart phones and other fields.

Rigid PCB Manufacturing Capability

Rigid PCB Manufacturing Capability
Item PCB HDI
Layer 1-40 1-40
Minimum linewidth/linespacing 3MIL/3MIL(0.075mm) 2MIL/2MIL(0.05MM)
Minimum hole diameter 6MIL(0.15MM) 6MIL(0.15MM)
Minimum solder resist opening (single-side) 1.5MIL(0.0375MM) 1.2MIL(0.03MM)
Minimum solder resist bridge 3MIL(0.075MM) 2.2MIL(0.055MM)
Maximum aspect Ratio (thickness/hole diameter) 10:01 8:01
Impedance control accuracy +/-8% +/-8%
Finished thickness 0.3-3.2MM 0.2-3.2MM
Maximum board size 630MM*620MM 620MM*544MM
Maximum finished copper thickness 6OZ(210UM) 2OZ(70UM)
Minimum board thickness 6MIL(0.15MM) 3MIL(0.076MM)
Maximum layer 14层 12层
Surface treatment HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag Immersion Gold,OSP,selectiveimmersion gold,
carbon print
Min/max laser hole size / 3MIL / 9.8MIL
Laser hole size tolerance / 10%



Packaging & Delivery
Packaging Details: Inner: vacuum packing or Anti-static package,
Outer: export carton
or according to the customer's requirement.
Port: Shenzhen or Hongkong
Lead Time: Quantity(Pieces) 1-10 11-100 101-1000 >1000
  Est. Time(days) 20 21 25 To be negotiated
