Product Details:
|
| PCB: | HDI Arbitrary Interconnected Circuit Board | Base Material: | TLY-5（PTFE）+High Tg |
|---|---|---|---|
| Number Of Layers: | 6 Layer | Board Thickness: | 2.0mm+/-10% |
| Min. Line Width: | 0.1mm | Inner Layer Spacing: | 0.15mm |
| Min. Hole Size: | 0.20mm | Warpage: | ≤0.3% |
| High Light: | PTFE Fr4 High TG PCB,6L High TG PCB,PTFE Fr4 HDI Circuit Board |
||

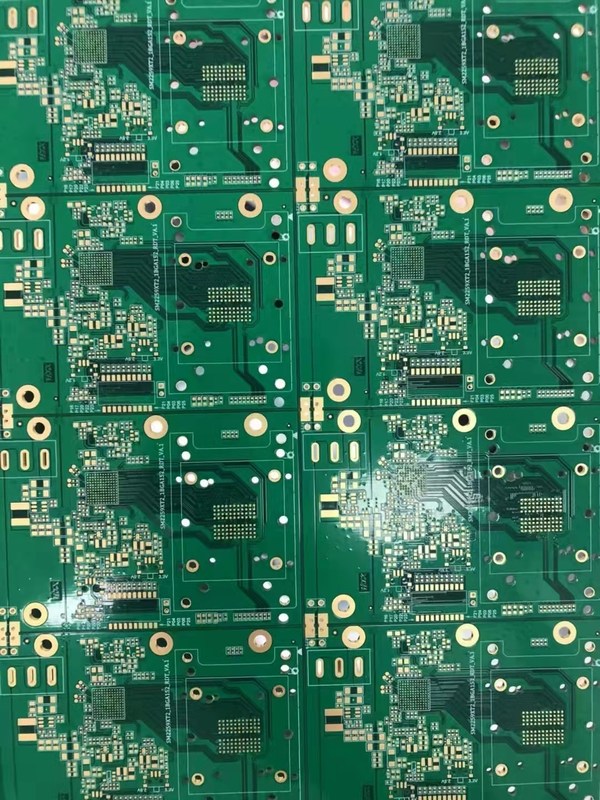

Description Of PCB Printed Circuit Board
this board is 6 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.
| Rigid PCB Manufacturing Capability | ||
| Item | PCB | HDI |
| Layer | 1-40 | 1-40 |
| Minimum linewidth/linespacing | 3MIL/3MIL(0.075mm) | 2MIL/2MIL(0.05MM) |
| Minimum hole diameter | 6MIL(0.15MM) | 6MIL(0.15MM) |
| Minimum solder resist opening (single-side) | 1.5MIL(0.0375MM) | 1.2MIL(0.03MM) |
| Minimum solder resist bridge | 3MIL(0.075MM) | 2.2MIL(0.055MM) |
| Maximum aspect Ratio (thickness/hole diameter) | 10:01 | 8:01 |
| Impedance control accuracy | +/-8% | +/-8% |
| Finished thickness | 0.3-3.2MM | 0.2-3.2MM |
| Maximum board size | 630MM*620MM | 620MM*544MM |
| Maximum finished copper thickness | 6OZ(210UM) | 2OZ(70UM) |
| Minimum board thickness | 6MIL(0.15MM) | 3MIL(0.076MM) |
| Maximum layer | 14L | 12L |
| Surface treatment | HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag | Immersion Gold,OSP,selectiveimmersion gold, |
| carbon print | ||
| Min/max laser hole size | / | 3MIL / 9.8MIL |
| Laser hole size tolerance | / | 10% |
OEM/ODM/EMS Services For PCBA:
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
FAQ:
Q: What service do you have?
FASTPCB: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
Q: What is needed for PCB & PCBA quotation?
FASTPCB: For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCB: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
FASTPCB: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q: What are the main products of your PCB/PCBA services?
FASTPCB: Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.
Q: What is your minimum order quantity (MOQ)?
FASTPCB: Our MOQ is 1 PCS, sample and mass production all can support.
Q: Are you factory?
FASTPCB:Shangxing West Industrial Zone, Xihuan Road, Shajing Street, Bao 'an District, Shenzhen, Guangdong province, China
