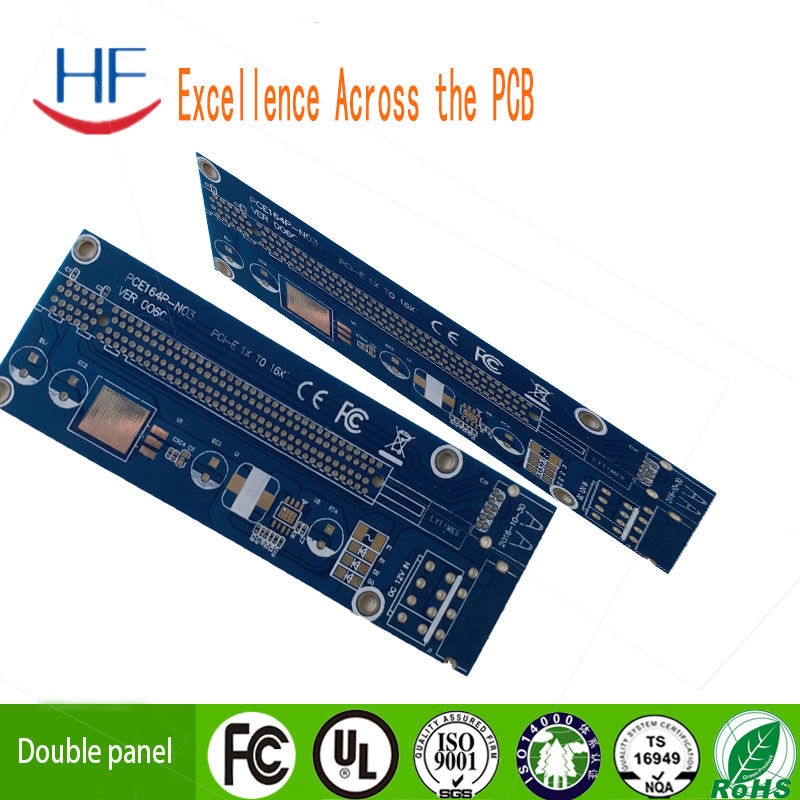

3oz FR4 Printed 94VO Circuit Board ENIG ROHS PCB 12 Layer
Product Details:
| Place of Origin: | China |
| Brand Name: | HF |
| Certification: | ISO CE |
| Model Number: | PCB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing, high quality carton |
| Delivery Time: | 5~8 days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | Ten thousand square meters per month |
|
Detail Information |
|||
| Base Material:: | FR4 ,Rogers , Aluminum ,Hight TG | Number Of Plies: | 2-28 Layer |
|---|---|---|---|
| Board Thickness:: | 0.6～3.2mm | Copper Thickness:: | 1-4oz |
| Solder Color: | Green,Red,Black,Yellow,White,Blue | Silkscreen Color: | White,black,yellow |
| Surface Finishing:: | HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver | Min. Hole Size: | 3mil |
| Service: | OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA | Surface Finishing: | HASL,ENIG,OSP,HASL Lead Free,spray Tin |
| High Light: | FR4 94vo circuit board,Printed 94vo circuit board,enig rohs pcb Board |
||
Product Description
Capability
| High precision prototype | PCB bulk production | ||
| Max Layers | 1-28 layers | 1-14 layers | |
| MIN Line width(mil) | 3mil | 4mil | |
| MIN Line space(mil) | 3mil | 4mil | |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm | |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Board thickness | MAX | 8mm | 7mm |
| MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
| MAX Board size | 610*1200mm | 610*1200mm | |
| Max copper thickness | 0.5-6oz | 0.5-6oz | |
| Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
||
| Hole copper thick | 25um 1mil | 25um 1mil | |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
| Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
|
| Impedance | ±10% | ±10% | |
| MIN Solder mask bridge | 0.08mm | 0.10mm | |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm | |
