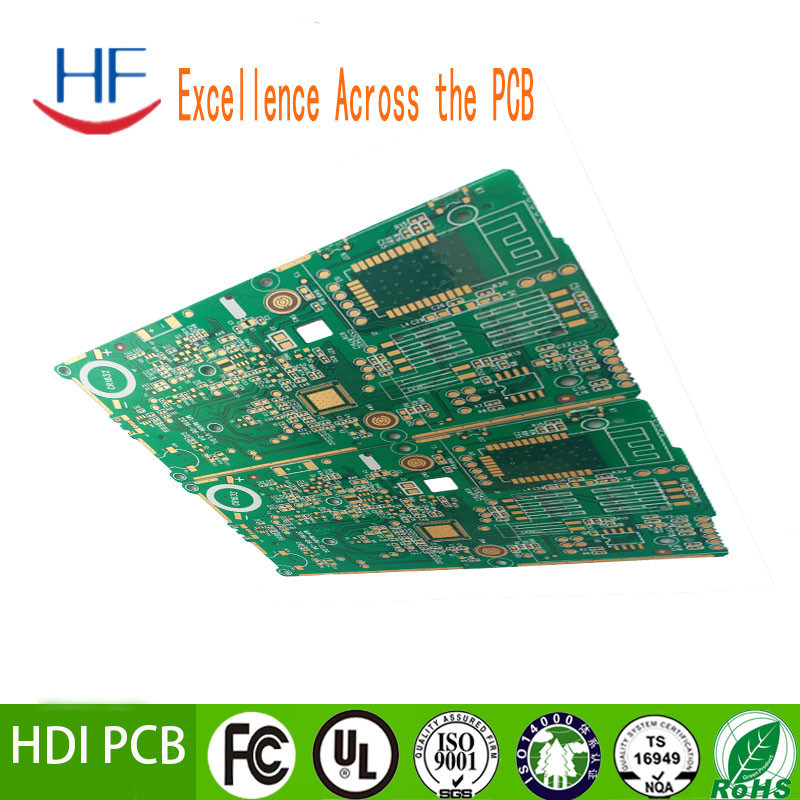

Inverter HDI Electronic PCB Board Printed Circuit Board FR4
Product Details:
| Place of Origin: | China |
| Brand Name: | HF |
| Certification: | ISO CE |
| Model Number: | HDI PCB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | High quality carton packing, high quality vacuum packing, |
| Delivery Time: | 5~8 days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | Ten thousand square meters per month |
|
Detail Information |
|||
| Base Material: | FR4,HDI | Layer Count: | 8 Layer |
|---|---|---|---|
| Board Thickness: | 1.4mm | Copper Thickness: | 2oz |
| Solder Color: | Green,Black,white,red,yellow,blue | Silkscreen Color: | White,black,yellow |
| Surface Finishing: | HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver | Service: | OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing |
| High Light: | HDI Electronic PCB Board,FR4 Electronic Pcb Board,FR4 inverter pcb board |
||
Product Description
RoHS Inverter PCB Printed Circuit Board FR4 Electronic Pcb Board
| 1 | High precision prototype | PCB bulk production |
|
2 |
1-28 layers | 8 layers |
| 3 | 3mil | 2mil |
| 4 | 0.15mm | 0.6mm |
| 5 | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| 6 | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 8 layers |
| 7 | Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
Immersion Gold:Au,1—8u” |
| 8 | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm |
| 9 | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.1mm |
| 10 | ±10% | ±10% |
RFQ
1. Are you headquarter or branch?
We are Ping you headquarter and factory.
2. Can I ask for samples before placing an order?
Yes, we welcome sample order to test and check quality,Miced samles are acceptable.
3. How to be your overseas agent?
Depends which area you are located in,Every conuntries are different.
4. What need I do if I want to pint my own logo?
First, please send us your logo flie in high resolution, We will make some drafts for
your reference to confirm the position and size of your logo.Next we will 1-2 samples
for you to check the actual effect.Finally the formal production will start after the
sample confrimed .
5. Can you ship the goods to my agent or shipping forwarder in China?
Yes,We can,please kindly contact with your agent in advance and us detailed address.
6. How can you solve the problem if receive the defective goods?
Will check all the products before delivery,Please kindly provide the pictures or
video and send back to china or our local agent,After they checking,will replace new
or fix free.
