High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing
  • High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing
  • High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing

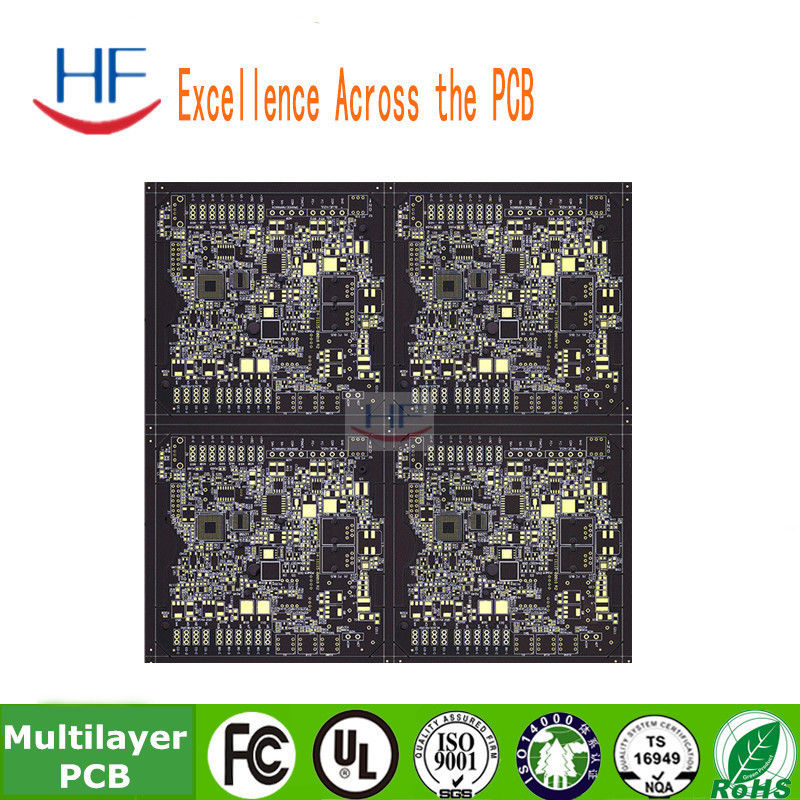

High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number High precision pcb
Product Details
Material:
Shengyi RogersTaconic
Layer Count:
4
Board Thickness:
2.0
Copper Thickness:
1oz
Solder Mask Color:
Black
Surface Finishing:
Immersion Gold
Min Hole Size:
0.15mm (mechanical Drill)/ 4mil (laser Drill)
Service:
OEM Services Provided
Layer Coun:
1-40
Silkscreen Color:
White Black
Test:
100% AOI, X-ray, Flying Probe Test.
Highlight:

multilayer pcb board

,

multilayer printed circuit board

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
carton
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
500PCS/Month
Product Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.



Capability

  High precision prototype PCB bulk production
Max Layers 1-30 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm



High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing 0



Applications


Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.

High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.

Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc

Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.

Military
Satellite, radar, airplane, control unit, communication equipment .etc.

Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.



High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing 1



Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc



High Precision Prototype PCB Printed Circuit Board Black board 4 Layer Lead Free Surface Finishing 2
