FPC Flexible Circuit Board, FPC Professional Custom Circuit Board Manufacturer, FPC pcb
  • FPC Flexible Circuit Board, FPC Professional Custom Circuit Board Manufacturer, FPC pcb
  • FPC Flexible Circuit Board, FPC Professional Custom Circuit Board Manufacturer, FPC pcb

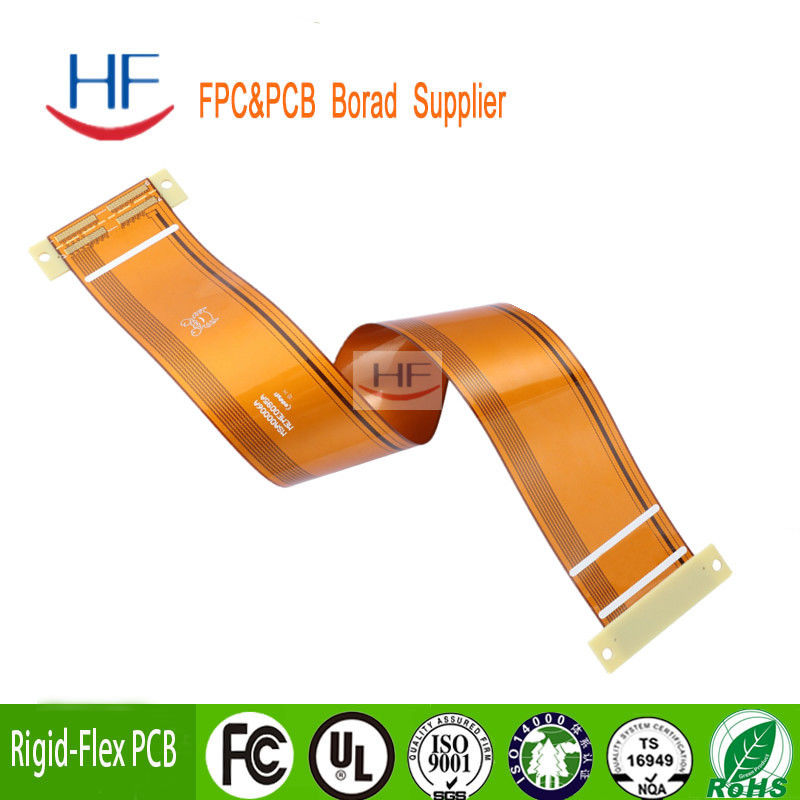

FPC Flexible Circuit Board, FPC Professional Custom Circuit Board Manufacturer, FPC pcb

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number Flexible Circuit Board
Product Details
Layer:
1-12
Copper Thickness:
1-6oz
Silkscreen Color:
White, Black
Solder Mask Color:
Green,white,black,red,yellow
Operating Temperature:
-40℃ To 125℃
Solderability:
260℃ For 10 Seconds
Surface Finish:
Immersion Gold
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Board Thickness:
0.4-4.0mm
Surface Finishing:
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Service:
OEM/ODM/PCB/Components Sourcing/Assembly/Programming/Testing...One-stop Turnkey Service.
Test:
100% AOI, X-ray, Flying Probe Test.
Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
box
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
1000/㎡/day
Product Description
FPCB Manufacturing Capability
Item
Production capability
Layer Count
1~6
Production size(Min & Max)
250mm×40mm / 710mm×250mm
Copper thickness of lamination
1/3 ~ 1oz
Product board thickness
0.036 ~ 2.5mm
Auto-cutting accuracy
±0.1mm
Drill size(Min/Max/hole size tolerance)
0.075mm/ 6.5mm / ±0.025mm
Min percent for CNC slot length and width
2:01:00
maximum aspect Ratio (thickness/hole diameter)
8:01
Homogeneity of Plating Cu
≥90%
Accuracy of pattern to pattern
±3mil ( ±0.075mm)
Accuracy of pattern to hole
±4mil ( ±0.1mm )
Min line width/space
0.045 /0.045
Etching tolerance
±20%(±0.02mm)
Cover layer alignment tolerance
±6mil (±0.1 mm)
Excessive adhesive tolerance for pressing C/L
0.1mm
Alignment tolerance for thermosetting S/M and UV S/M
±0.3mm
Min S/M bridge
0.1mm
Min space for S/M to pad, to SMT
0.075mm / 0. 1mm
Min space for legend to pad/ to SMT
0.2mm / 0.2mm
Surface treatment thickness for Ni/Au/Sn/OSP
1~6um /0.05~0.76um /4~20um/ 1um
Min size E- tested pad
8 X 8mil
Min space between tested pads
8mil
Min dimention tolerance of outline (outside edge to circuit)
±0.1mm
Min dimention tolerance of outline
±0.1mm
Min R corner radius of outline (Inner filleted corner)
0.2mm
Min space golden finger to outline
0.075mm



Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.



FPC Flexible Circuit Board, FPC Professional Custom Circuit Board Manufacturer, FPC pcb 0

Applications:
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
