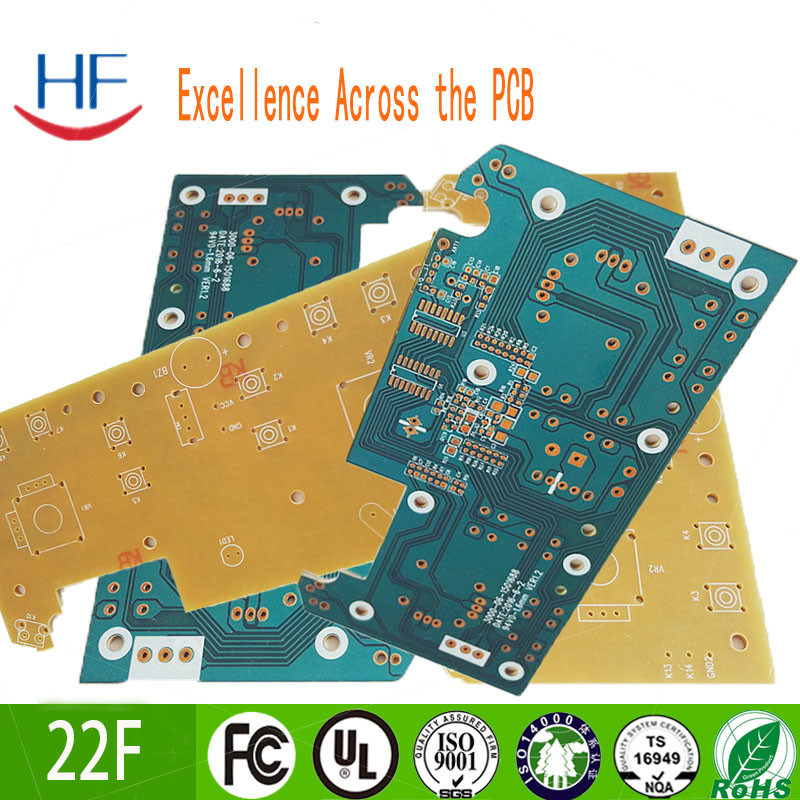

2oz Single Sided PCB Board Fabrication Gold Plating 0.6mm Copper FR4 Base
  • 2oz Single Sided PCB Board Fabrication Gold Plating 0.6mm Copper FR4 Base
  • 2oz Single Sided PCB Board Fabrication Gold Plating 0.6mm Copper FR4 Base

2oz Single Sided PCB Board Fabrication Gold Plating 0.6mm Copper FR4 Base

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number Single Sided PCB Board
Product Details
Base Material:
Fr-4
Number Of Layers:
Single Layer
Board Thickness:
0.6mm
Copper Thickness:
1oz
Solder Mask Color:
Green
Silkscreen Color:
White
Surface Finishing:
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Min. Hole Size:
0.20mm
Service:
One Stop Turnkey Service
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Test:
100% AOI, X-ray, Flying Probe Test.
High Light:

2oz Single Sided PCB Board

,

0.6mm Single Sided PCB Board

,

FR4 single pcb fabrication

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
box
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
1000/㎡/day
Product Description

Product Description:
Base Material: FR-4
Board Thickness:0.4~3.2mm
Number of Layers: single Layer
Price: Negotiable
Min. Line Width:3 Mil
Min. Line Spacing:3 Mil
Surface Finishing:HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver
Copper Thickness:1.0~3.0 Oz
Min. Hole Size: 4 Mil
Solder mask color:Green ,black, white,blue,yellow, red
Character color:white ,black
Place of Origin: Guangdong, China (Mainland)
Supply Ability:1000/㎡/day


Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
