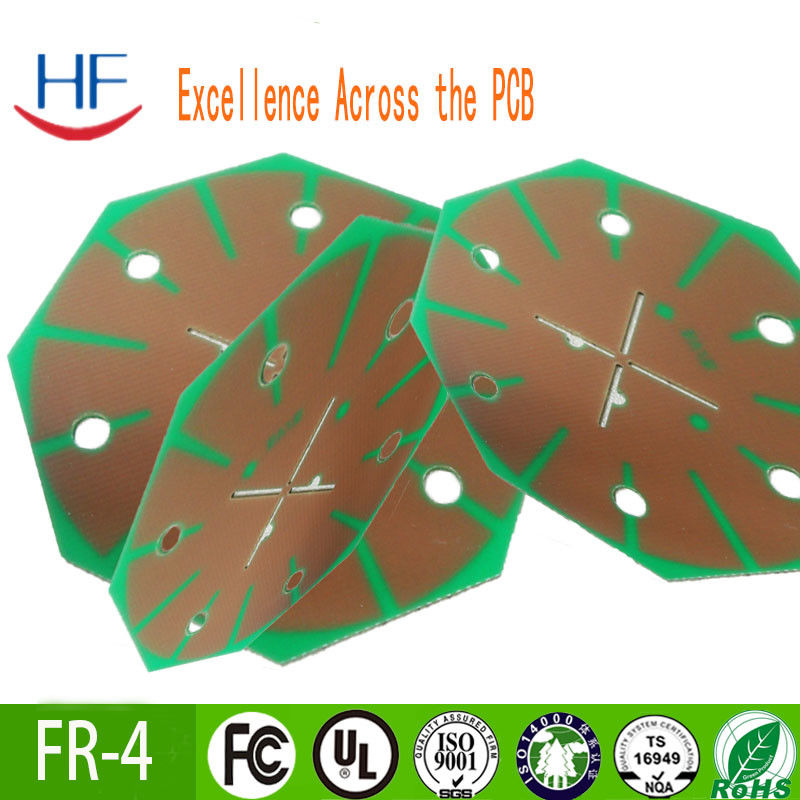

HASL Assemblies Pcb Motherboard 94vo Circuit Board Single Sided
Product Details:
| Place of Origin: | China |
| Brand Name: | HF |
| Certification: | ISO CE |
| Model Number: | Single Sided PCB Board |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | box |
| Delivery Time: | 5~8 days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 1000/㎡/day |
|
Detail Information |
|||
| Base Material: | Fr-4 | Number Of Layers: | Single Layer |
|---|---|---|---|
| Board Thickness: | 1.2mm | Copper Thickness: | 1oz |
| Solder Mask Color: | Green | Silkscreen Color: | White |
| Surface Finishing: | HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver | Min. Hole Size: | 0.20mm |
| High Light: | HASL assemblies pcb motherboard,94vo assemblies pcb motherboard,HASL 94vo circuit board |
||
Product Description
Introduction:
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
