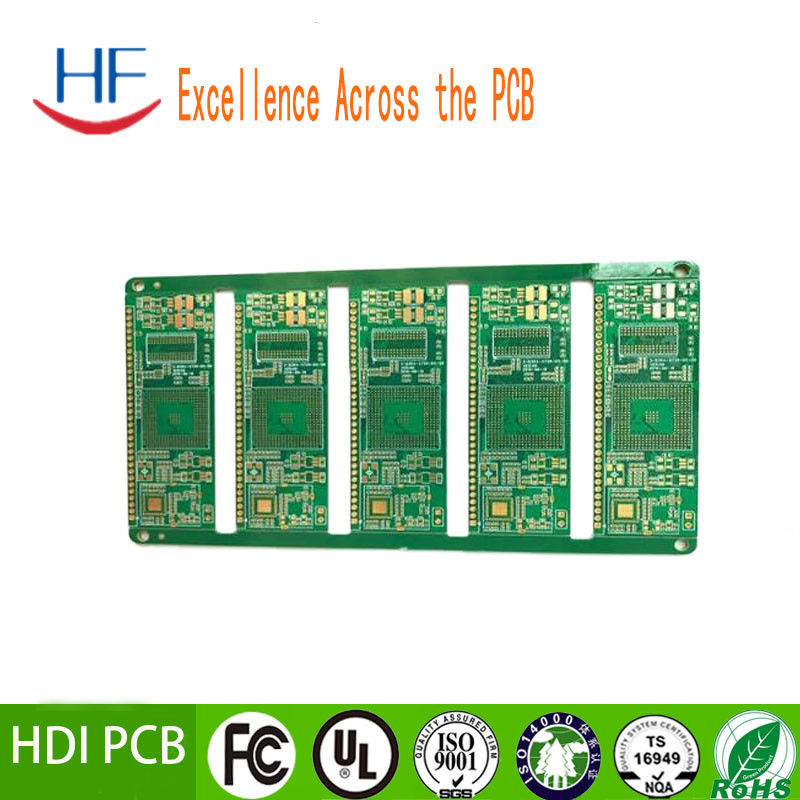

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board
  • 10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board
  • 10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number HDI PCB
Product Details
Base Material:
FR-4
Board Thickness:
1.6MM
Number Of Layers:
10 LAYER
Copper Thickness:
1OZ
Min. Hole Size:
3MIL
Min. Line Width/Spacing:
3/3MIL
Solder Mask Color:
Blue
Place Of Origin:
CHINA
Supply Ability:
Ten Thousand Square Meters/month
Surface Finishing:
Immersion Gold
Type:
Customizable,ru 94v0 Pcb Printed Circuit Board,Electronic Board,Flexible Circuit Board,Electronics Device
Item:
Custom Circuit Board,Pcb Board,DGW-16,2 Layer Pcb,6 LAYER
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Silkscreen Color:
White Black
Service:
OEM/ODM/PCB/Components Sourcing/Assembly/Programming/Testing...One-stop Turnkey Service.
Test:
100% AOI, X-ray, Flying Probe Test.
High Light:

1.6mm Circuit Board Assembly

,

Fr4 Pcb Prototype Board

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
BOX
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
Ten thousand square meters/month
Product Description





Capability



  High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm





Applications:


Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.

High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.

Industry




Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc



10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 0

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 1

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 2

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 3





10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 4

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 5

10 Layers Fr4 1.6mm 94v0 HDI PCB Printed Circuit Board 6
