Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil
  • Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil
  • Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil

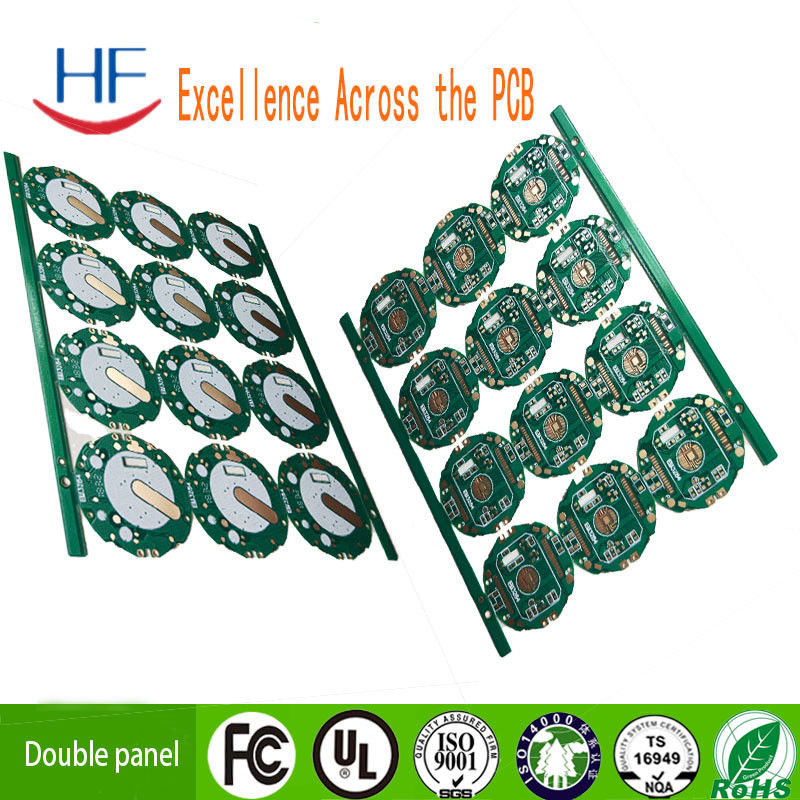

Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number PCB
Product Details
Base Material::
FR4 ,Rogers , Aluminum ,Hight TG
Number Of Plies:
2-28 Layer
Board Thickness::
0.6-3.2mm
Copper Thickness::
1-4oz
Solder Color:
Green,Red,Black,Yellow,White,Blue
Silkscreen Color:
White,black,yellow
Surface Finishing::
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Min. Hole Size:
3mil
Service:
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Board Thickness:
0.4-4.0mm
Copper Thickness:
1-6oz
Solder Mask Color:
Green, Yellow,white, Blue,black,red
Surface Finishing:
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Test:
100% AOI, X-ray, Flying Probe Test.
High Light:

Rigid multilayer printed circuit board

,

FR4 multilayer printed circuit board

,

FR4 quick turn pcb assembly

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Vacuum packing, high quality carton
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
Ten thousand square meters per month
Product Description

Capability



  High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm





Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 0

Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 1

Applications:


Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.

High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.

Industry


Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc

Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.

Military
Satellite, radar, airplane, control unit, communication equipment .etc.

Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.



Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 2




1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc






Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 3

Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 4

Rigid Multilayer Printed Circuit Board Quick Turn PCB Assembly FR4 3mil 5
