Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA
  • Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA
  • Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA

Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number PCBA
Product Details
Color:
Green
Input Power:
5V 2A
Output:
5V1A
Transmission Distance:
2-8mm
Executive Standard:
Qi Wireless Charging Standard
Product Certification:
CE/FCC/ROHS
High Light:

Coil QI Pass PCB Circuit Board

,

Mini PCBA PCB Circuit Board

,

Mini wireless charger pcba circuit board

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
High quality carton packing, high quality vacuum packing,
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
Ten thousand square meters per month
Product Description

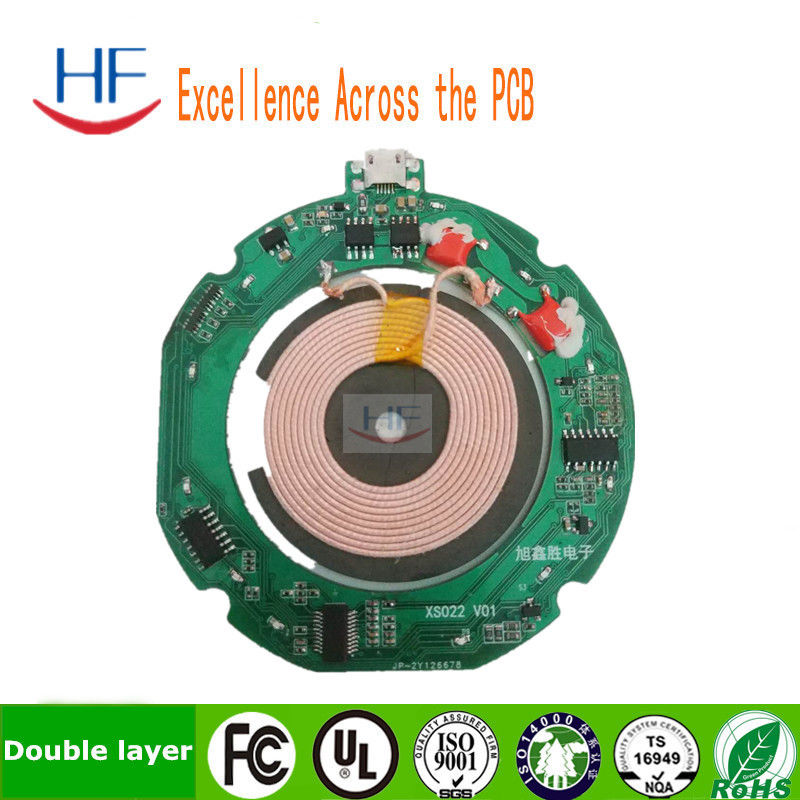

Coil QI Pass LED PCB Board Wireless Charger Transmitter Module Mini PCBA



Mini small wireless charger transmitter module mini PCBA coil QI pass led pcb board





PCB Printed Circuit Board (SMT) Product Capacity



SMT Capacity
SMT Item Capacity
PCB Max. size 32mm*42mm
Chip component 0201 package
Min.pin space of IC 0.1mm
Min. space of BGA 0.1mm
Max.precision of IC assembly ±0.01mm
Assembly capacity ≥2 million piots/day
DIP capacity  DIP production lines
Assembly testing Bridge test,AOI test, X-Ray test,

FCT(Functional Circuit Test)
Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.



Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA 0

Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA 1

Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA 2





Coil QI Pass PCB Circuit Board Wireless Charger Transmitter Mini PCBA 3






PCB purposes



The reason the PCB has been used more and more widely is because it has many unique advantages, including the following.


1. Can be densified.For decades, the high density of printed boards has been able to develop with the improvement of integrated circuit integration and installation technology.


2. High reliability.Through a series of inspections, tests and aging tests, the PCB can be guaranteed to work reliably for a long time (service life, generally 20 years).


3. Designability.For all kinds of performance requirements of PCB (electrical, physical, chemical, mechanical, etc.), we can realize the design of printed board through design standardization, standardization, etc., with short time and high efficiency.
Productive.Adopt modern management, can carry out standardization, scale (quantity), automation and other production, to ensure the consistency of product quality.


4. Testability.Set up a relatively complete test method, test standard, a variety of test equipment and instruments to detect and identify the quality and service life of PCB products.


5. Assemblability.PCB products are not only convenient for various components to be standardized assembly, but also can be automated, large-scale mass production.At the same time, PCB and various components assembly parts can also be assembled into larger components, systems, until the complete machine.
