Single Sided PCB Board
>
|
| Place of Origin | China |
| Brand Name | HF |
| Certification | ISO CE |
| Model Number | PY led 1868 |

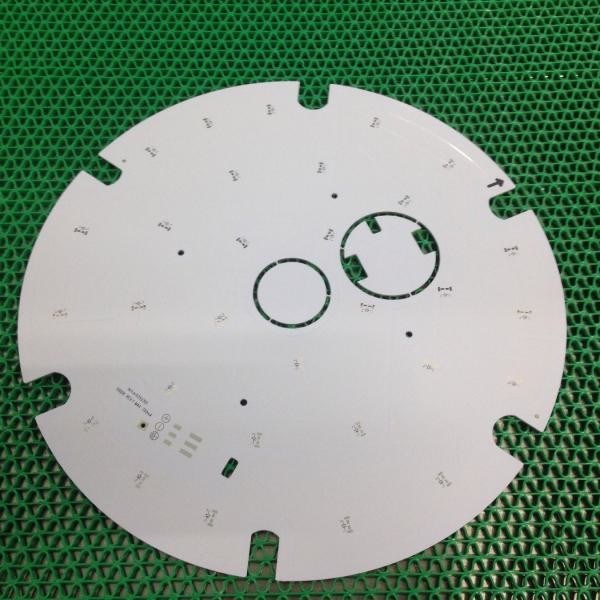

Reliable Electronic LED Printed Circuit Board , Aluminum PCB Board With 1 - 12 Layers
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | OEM led pcb | Model Number: | Rigao-led pcb |
| Base Material: | FR4 | Copper Thickness: | 1OZ-4OZ | Board Thickness: | 1.6mm |
| Min. Hole Size: | 0.1mm | Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.075mm |
| Surface Finishing: | HASL | layer: | 2-28 | color: | green, red, blue, white, yellow |
| product Type: | led pcb | Solder Type: | water soluble Solder Paste,Leaded and Lead-free | File formats: | Gerber Files;Pack-N-Place File(XYRS) |
| Bare Board Size: | Smallest 0.25*0.25 inches; Largest 20*20 inches | Quantity: | Prototype and small to middle volume are our specialty | Component Packaging: | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time: | same Day Service to 15 days service | Testing: | X-RAY inspection & AOI Test |
| Packaging Details: | Anti - static bag, vacuum packing,corrugated export carton |
| Delivery Detail: | two weeks after we receive customers' payment |
aluminum LED board led pcb alu led pcb
1.PCB&PCBA Service
2.UL,RhHS Certificated PCB
3. customized
Aluminum LED board led pcb alu led pcb.
Production detail:
1. PCB&PCBA Service
2. UL,SGS,Rohs Certificated
3. OEM PCBA are welcome
4. Quick turn pcb and pcb assembly
5. PCBA Leadtime:14 days
6. 1-28 layers
PCB Assembly and led pcb Specification
| Quantity | Prototype, small-medium and high volume |
| Type of Assembly | SMT and Through hole |
| Solder Type | Water Soluble Solder Paste, Lead and Lead Free |
| File Formats | Bill of Materials |
| Gerber files | |
| Bare Board Size | Smallest:0.25*0.25 Inches |
| Largest: 20*20 Inches | |
| Components | Passives Down to 0201 Size |
| BGA and VFBGA | |
| Leadless Chip Carriers/ CSP | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component Packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same Day Service to 15 day service |
| Testing | X-RAY Inspection & AOI Test |
Process Capability of led pcb
| Item | Technical Index | |
| Layer | 1-22 layers(Rigid Board) | |
| 1-10 layers(Flexible Board) | ||
| Multi-layer | ||
| Base Material | FR4, PI, PET | |
| Cooper Thickness | Rigid PCB | 0.5Oz to12Qz |
| Flexible PCB | 18μm-105μm | |
| Min. Hole Size | 0.2mm | |
| Min. Line Width | Rigid PCB | 0.1mm |
| Flexible PCB | 3mil | |
| Min. Line Spacing | Rigid PCB | 0.1mm |
| Flexible PCB | 3mil | |
| Surface Treatment | OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin | |
| External Treatment | Precise V-cut, externally pressed or milled, laser appearance | |
| External Tolerance | ±0.05mm | |
| Solder Mask Color | Blue/White/Green/Red/Yellow | |
| Welding Resistance Film | Covered in layers with PI and PET film | |
|
Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil |
||
| Type of oil | Applicable to silk printing in multi-colors | |
Company profile:
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume,
and high volume projects. We are able to guarantee a complete service with comprehensive technical
backup, offering a cost advantage and scheduled delivery.
Our main services include offering:
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPCA600(PCB) and
IPCA610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
FAQ
1. What do you need in order to quote a job?
A. Keep in mind that the more information you give us, the better the quote will be.
Quantity and a fab drawing consisting of outline dimensions, drilling info and any special fab notes.
You may simply fill in our quote form with this info or call us for a quick response.
You can email this information with Gerber files and we will extract this info but it may delay the quote.
2. How long will it take to get a quote?
A. Once we have received the above information, we can usually reply to a quote within 24 hours or less for led pcb and printed circuit board.
3.Can you perform an electrical test on our boards and if so, how is this done?
A. We prefer to test your boards but this is an optional process requiring a test fixture charge.
You will not pay for this fixture again if the board does not change.
The test is a bed of nails netlist test for opens and shorts based on the nets extracted from the Gerber files
supplied for the led pcb fabrication.
Once tested, the boards have been verified to match the Gerber files 100% against opens or shorts.
