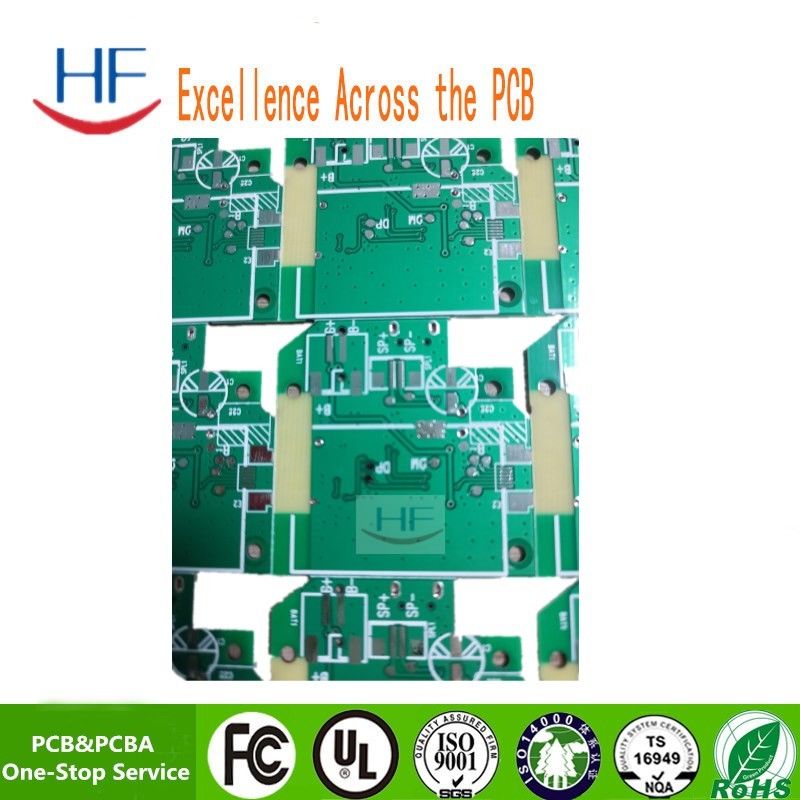

Customized 2oz Copper SMD PCB Board Prototyping green
  • Customized 2oz Copper SMD PCB Board Prototyping green
  • Customized 2oz Copper SMD PCB Board Prototyping green

Customized 2oz Copper SMD PCB Board Prototyping green

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number PCB
Product Details
Color:
Green,Red,Black,Yellow,White,Blue
Number Of Plies:
2-4-6-8-10-12-16-20-22-28 Layer
Copper Thickness::
1-4oz
Base Material::
FR-4 ,Rogers , Aluminum ,Hight TG
Board Thickness::
0.6~1.0~1.2~1.6~2.0~2.5~3.0~3.2mm
Place Of Origin::
Guangdong, China (Mainland)
Surface Finishing::
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Min. Hole Size:
3mil
Service:
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey Service,PCBA
Application:
Electronics Device,ru 94v0 Pcb Printed Circuit Board,Consumer Electronics,rigid Fpc,mobile Usb Charger
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Board Thickness:
0.4-4.0mm
Copper Thickness:
1-6oz
Solder Mask Color:
Green, Yellow,white, Blue,black,red
Silkscreen Color:
White Black
Surface Finishing:
HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Test:
100% AOI, X-ray, Flying Probe Test.
High Light:

2oz smd pcb board

,

smd pcb board Prototyping

,

Customized 2oz copper pcb

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Vacuum packing, high quality carton
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
Ten thousand square meters per month
Product Description



Applications
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems,
biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.

Capability

category project Description
Base Material fr-4 ,PTFE ,Polyimide Ordinary Tg, medium Tg, high Tg, halogen free, Low Dk, Low loss, high CTI, PTFE
LAYER Rigid PCB 1-32LAYER



  fpc PCB 0-10LAYER
Rigid -Flexible PCB 2-18LAYER
Board Thickness Rigid PCB 0.4-6.0MM
fpc PCB 0.05-0.36MM
Rigid -Flexible PCB 0.4-6.0MM
Copper Thickness inner layer 0.5-8.0 OZ
outer layer 0.5-8.0 OZ
Surface Finishing Hasl 0.3-1.0um
Immersion Gold 0.025-0.1um
OSP 0.2-0.6um
Immersion tin 0.8-1.2um
Solder mask color outer layer Green,black,white,blue,yellow,red
Character color outer layer white ,black, yellow
Min. Line Width inner layer 0.05/0.05MM
outer layer 0.05/0.05MM
Min. Line Spacing inner layer 0.05/0.05MM
outer layer 0.05/0.05MM
Drill Hole Max Diling dameter 6.5MM
Min Diling Diameter 0.1mm
MinSlot 0.60MM
Drilig tolerance PTH:+/-0.075mm NPTH:+/-0.05mm
Slot tolerance PTH:+/-0.10mm NPTH:+/-0.05mm
Board Size Rigid PCB 800*2000MM
fpc PCB 200*800MM
Rigid -Flexible PCB 200*500MM
Drill Aspect Ratio Mechanical hole 12.0:1.0
blind hole 1.0:1.0
Solder mask bridge green oil 0.08MM
white,blue,yellow,red 0.1MM
black oil 0.12MM
Bow and Twist Rigid PCB 0.5-0.75%
core thickness Rigid PCB 0.075MM (excluding copper)
Resin plug hole hole size 0.2-0.35mm
Carbon oil thickness 10um(min)
V - cut Rigid PCB 30 45 60 (Tolerance: + / - 5 degrees)
impedance 50-120 ohm Tolerance: + / - 10 %
PP type Commonly used 1080,2116,7628 ,106

Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 24hours.
5. Certificates (ISO/UL E354810/RoHS)
6.10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
Customized 2oz Copper SMD PCB Board Prototyping green 0
Customized 2oz Copper SMD PCB Board Prototyping green 1
Customized 2oz Copper SMD PCB Board Prototyping green 2
