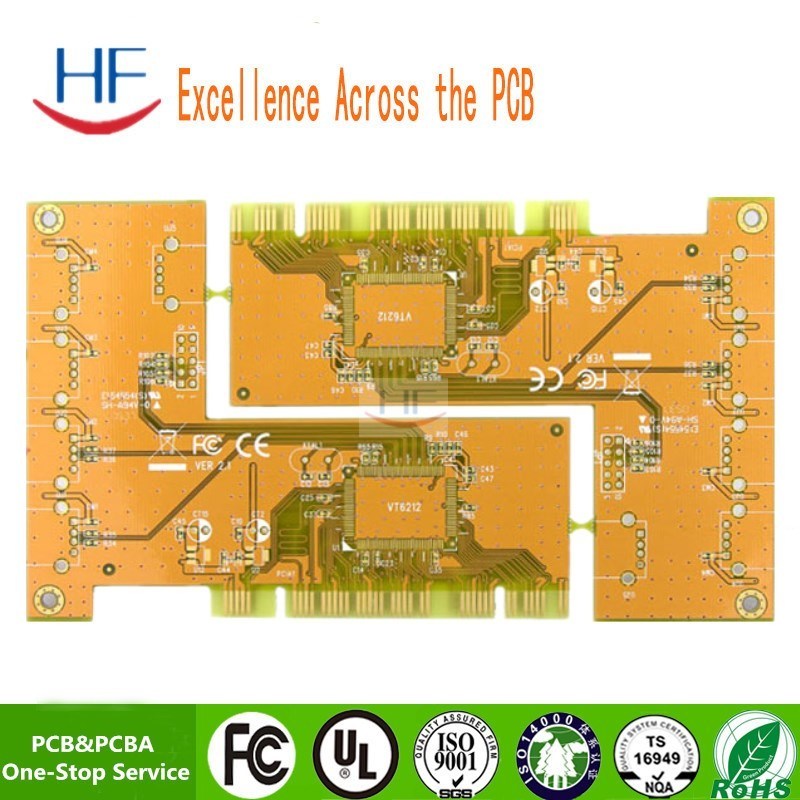

1.4mm 94V0 Blank Printed Circuit Board Epoxy Insulation Immersion Gold PCB
Product Details:
| Place of Origin: | China |
| Brand Name: | HF |
| Certification: | ISO CE |
| Model Number: | PCBA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | High quality carton packing, high quality vacuum packing, |
| Delivery Time: | 5~8 days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | Ten thousand square meters per month |
|
Detail Information |
|||
| Base Material: | 94V0,ROHS | Number Of Plies: | 1 Layer |
|---|---|---|---|
| Board Thickness: | 1.4mm | Copper Thickness: | 1oz |
| Solder Color: | YELLOW | Silkscreen Color: | White |
| Surface Finishing: | Osp | ||
| High Light: | 1.4mm blank printed circuit board,94V0 blank printed circuit board,94V0 Immersion Gold PCB |
||
Product Description
| 1 | High precision prototype | PCB bulk production |
|
2 |
1-28 layers | 1 layers |
| 3 | 3mil | 2mil |
| 4 | 0.15mm | 1.2mm |
| 5 | Aspect Ration≤13:1 | Aspect Ration≤13:1 |
| 6 | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 1 layers |
| 7 | Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
Nickel Plated :50—500u” |
| 8 | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm |
| 9 | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.1mm |
| 10 | ±10% | 5% |
Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
Want to Know more details about this product
