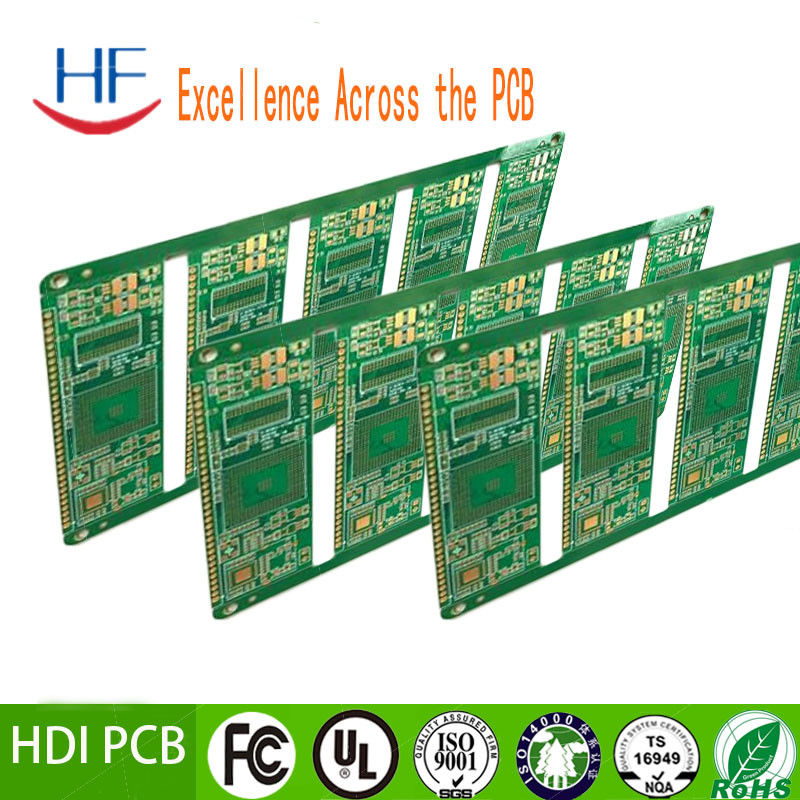

FR4 Halogen Free Multilayer Electronic PCB Board Circuit Design
  • FR4 Halogen Free Multilayer Electronic PCB Board Circuit Design
  • FR4 Halogen Free Multilayer Electronic PCB Board Circuit Design

FR4 Halogen Free Multilayer Electronic PCB Board Circuit Design

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number PCB
Product Details
Material:
FR-4, FR4 Halogen Free,
Layer Count:
1-28
Board Thickness:
0.4-3.2
Copper Thickness:
1-4oz
Solder Color:
Green, Yellow,white, Blue,black,red
Silkscreen Color:
White,black,yellow
Surface Finishing:
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Service:
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing
Layer Coun:
1-40
Solder Mask Color:
Green, Yellow,white, Blue,black,red
Test:
100% AOI, X-ray, Flying Probe Test.
High Light:

FR4 Multilayer Electronic PCB Board

,

Halogen Free Electronic PCB Board

,

FR4 pcb circuit board design

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
box
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Product Description



Description


1. Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly


2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180


3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger


ApplicationFR4 Halogen Free Multilayer Electronic PCB Board Circuit Design 0


Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries



Capability


  High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%
Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm








Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
