4 Layer 25um 1mil Electronic PCB Board Layout Services Quick Turn
  • 4 Layer 25um 1mil Electronic PCB Board Layout Services Quick Turn
  • 4 Layer 25um 1mil Electronic PCB Board Layout Services Quick Turn
4 Layer 25um 1mil Electronic PCB Board Layout Services Quick Turn

4 Layer 25um 1mil Electronic PCB Board Layout Services Quick Turn

Place of Origin China
Brand Name HF
Certification ISO CE
Model Number PCB
Product Details
Base Material::
FR4, Hight TG
Layer Count:
2-4 Layer
Board Thickness::
0.6～1.6mm
Copper Thickness::
1-4oz
Solder Color:
Green,Black,white,red,yellow,blue
Silkscreen Color:
White,black,yellow
Surface Finishing:
HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Service:
OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing
Material:
FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free
Layer Coun:
1-40
Board Thickness:
0.4-4.0mm
Copper Thickness:
1-6oz
Solder Mask Color:
Green, Yellow,white, Blue,black,red
Test:
100% AOI, X-ray, Flying Probe Test.
Highlight:

25um Electronic PCB Board

,

1mil Electronic PCB Board

,

1mil pcb layout services

Payment & Shipping Terms
Minimum Order Quantity
5PCS
Price
Negotiable
Packaging Details
Vacuum packing, high quality carton
Delivery Time
5~8 days
Payment Terms
L/C, T/T,PAYPAL
Supply Ability
Ten thousand square meters per month
Product Description

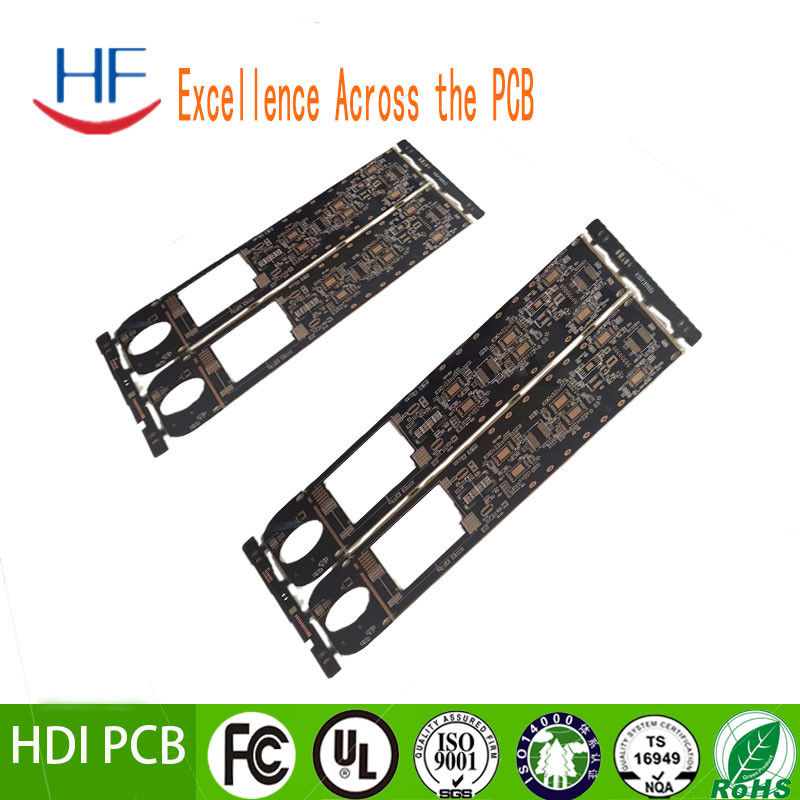

4 Layer 25um 1mil Fast Turn PCB Quick Turn Printed Circuit Boards



Product parameters



　 High precision prototype PCB bulk production
Max Layers 2 layers 4 layers
MIN Line width(mil) 2mil 4mil
MIN Line space(mil) 2mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm; 2 layers:0.2mm;
MAX Board size 520*1100mm 540*1100mm
Max copper thickness 4oz 4oz
Immersion Gold/
Gold Plated Thickness		 Immersion Gold:Au,1—8u”
 		 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board		 Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board
Outline Tolerance ≤100mm:+/-0.1mm ≤100mm:+/-0.13mm
Impedance ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.35mm--0.40mm 　0.80mm--1.10mm
