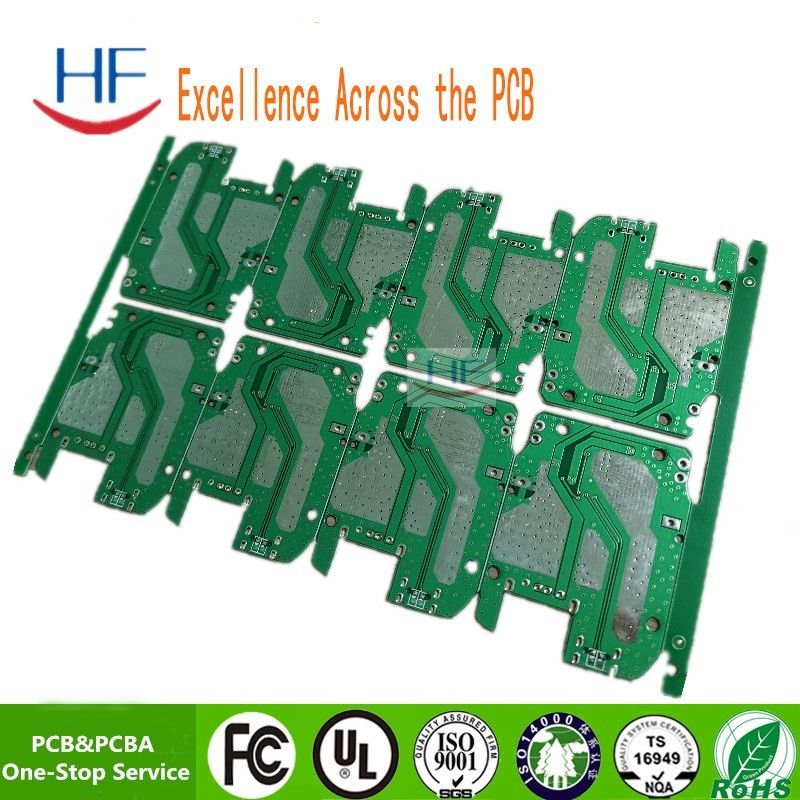

Mobile Power 850va Inverter Circuit Board PCBA 2oz Fr4 Green 1.0mm 4 Layer
Product Details:
| Place of Origin: | China |
| Brand Name: | HF |
| Certification: | ISO CE |
| Model Number: | PCB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing, high quality carton |
| Delivery Time: | 5~8 days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | Ten thousand square meters per month |
|
Detail Information |
|||
| Base Material:: | FR4 | Number Of Plies: | 6-8Layer |
|---|---|---|---|
| Board Thickness:: | 1.0mm | Copper Thickness:: | 2oz |
| Solder Color: | Green,Black,white,red,yellow,blue | Silkscreen Color: | White,black,yellow |
| Surface Finishing: | HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver | Service: | OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing |
| High Light: | Mobile 850va inverter circuit board,PCBA 850va inverter circuit board,850va pcba circuit board |
||
Product Description
Mobile Power PCBA 2oz Fr4 Circuit Board Green 1.0mm Pcb 1 Layer
| High precision prototype | PCB bulk production | ||
| Max Layers | 6layers | 6 layers | |
| MIN Line width(mil) | 2mil | 2mil | |
| MIN Line space(mil) | 2mil | 2mil | |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.2mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm | |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Aspect Ration | |||
| Board thickness | MAX | 8mm | 7mm |
| MIN | 6 layers:0.55mm; | 6 layers:0.6mm; | |
| MAX Board size | 590*1100mm | 590*1100mm | |
| Max copper thickness | 2oz | 2oz | |
| Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” |
||
| Hole copper thick | 25um 1mil | 25um 1mil | |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm | Board thickness≤1.0mm:+/-0.1mm |
| Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm: |
≤100mm:+/-0.13mm 100< ≤300mm: |
|
| Impedance | ±10% | ±10% | |
| MIN Solder mask bridge | 0.05mm | 0.03mm | |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm | |
