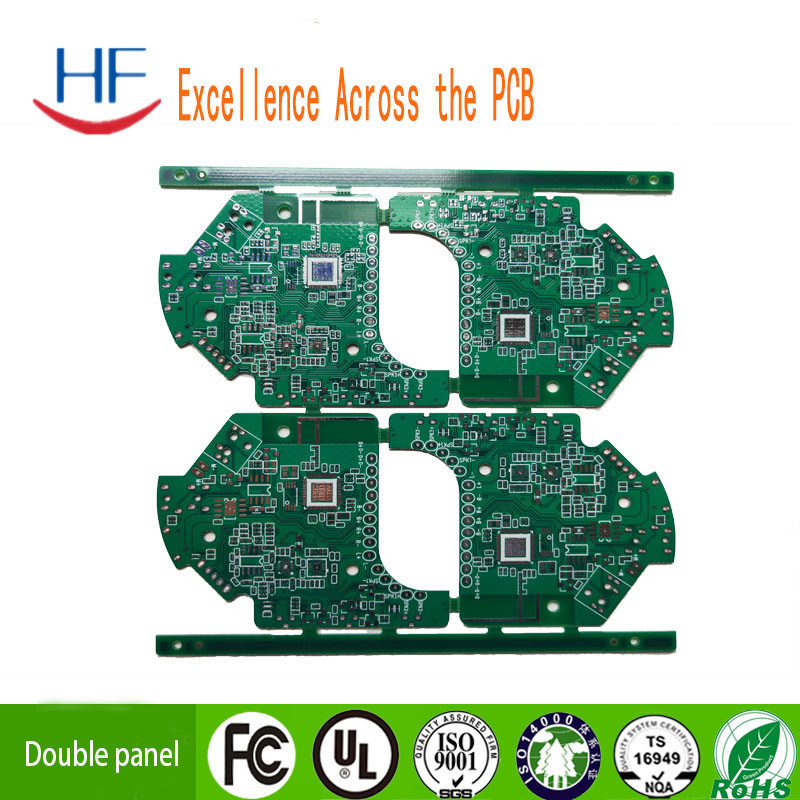

Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing
  • Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing
  • Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing

Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing

Place of Origin China
Brand Name HF
Certification CE
Model Number PCB
Product Details
Material:
FR4
Layer Count:
2
Board Thickness:
1.0
Copper Thickness:
1oz
Solder Mask Color:
Green
Surface Finishing:
HASL(lead Free)
Service:
OEM/ODM
Test:
100% Test
High Light:

PCB Circuit Board Manufacturing

,

Electronics Circuit Board Components

,

Bluetooth Speaker PCB Circuit Board

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
vacuum and carton
Delivery Time
2~3 days
Product Description

Huafu fast multilayer circuit Co., LTD is a professional and reliable one-stop PCB solutions provider for customers specialized in manufacturing quick turn prototypes and small volumes.With high quality and on-time delivery products we won the market's wide acclaim. We will continue to focus on customer satisfaction, along with "high quality "and "fast delivery", we will become a PCB service provider worthy of customer trust.



Capability

  High precision prototype PCB bulk production
Max Layers 1-30 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness>2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz

Immersion Gold/

Gold Plated Thickness

Immersion Gold:Au,1—8u”

Gold finger:Au,1—150u”

Gold Plated:Au,1—150u”

Nickel Plated :50—500u”


Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness

Board thickness≤1.0mm:+/-0.1mm

1.0mm<Board thickness≤2.0mm:+/-10%

Board thickness>2.0mm:+/-8%

Board thickness≤1.0mm:+/-0.1mm

1.0mm<Board thickness≤2.0mm:+/-10%

Board thickness>2.0mm:+/-8%

Outline Tolerance

≤100mm:+/-0.1mm

100< ≤300mm:+/-0.15mm

>300mm:+/-0.2mm

≤100mm:+/-0.13mm

100< ≤300mm:+/-0.15mm

>300mm:+/-0.2mm

Impedance ±10% ±10%
MIN Solder mask bridge  0.08mm  0.10mm
Plugging Vias capability  0.25mm--0.60mm  0.70mm--1.00mm



Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing 0



Applications



Communications

Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.

Computer Peripherals

High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.

Consumer

Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.

Automotive

Passenger safety systems, engine control systems, air bags, traction control products, etc.

High End Computing and Storage

High performance computer and server, mainframe system and storage equipment, memory, etc.

Industry

Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc

Medical

Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.

Military

Satellite, radar, airplane, control unit, communication equipment .etc.

Test & Measurement

Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.



Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing 1Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing 2



Advantages



1. PCB factory directly

2. Comprehensive quality control system

3. Competitive price

4. Quick turn delivery time from 48hours.

5. Certificates (ISO/UL E354810/RoHS)

6. 9 years experience in exporting service

7. No MOQ/MOV.

8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc



Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing 3Electronics Circuit Board Components Bluetooth Speaker PCB Circuit Board Manufacturing 4
